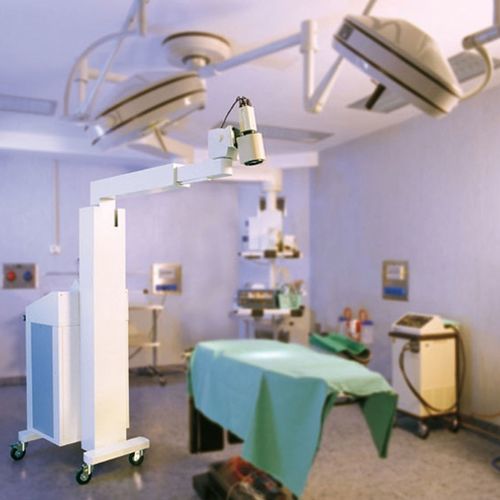

Camera holding surgical robot SVR 3J

minimally invasive surgery

The 3 CCD high resolution camera and the servo-actuated zoom provide a clear and high-contrast image in all enlargements. Every detail is restored with maximum chromatic fidelity. The professional quality of the video signal permits optimal connection in videoconference and facilitates the production of videos without loss of quality by means of a non-linear editing system. The camera can be positioned on the operation field through motorised telescopic adjustment of the column and horizontal arm, as well as through the pan-tilt along two axes. Therefore the operation can be filmed without loss of continuity, without disturbing the surgeons and medical personnel and without leaving any dead ground. The filming of deep and retroflexed fields is thus possible. Details All the filming team’s calibration and control operations can be made from the control console which integrates the video monitor in an ergonomic position: the set parameter status is visualized via LCD. The proportional action control guarantees a smooth movement of the video-camera on the operating field, also with regard to the greatest enlargements. In the light of 30 years of production experience, particular attention has been paid to safety, hygiene and practicality of use. There is no visible cable, no handling difficulty and each part can be easily cleaned. This and other factors make the SVR 3J a unique and unequalled apparatus. Min. Focal Distance - 1 m Field framed - 59 x 44 mm. (tele) - 819 x 614 mm. (wide), 39 x 29 mm. (tele con 1,5X ) - 546 x 409 mm. (wide con 1,5X ) alla distanza di 1m
