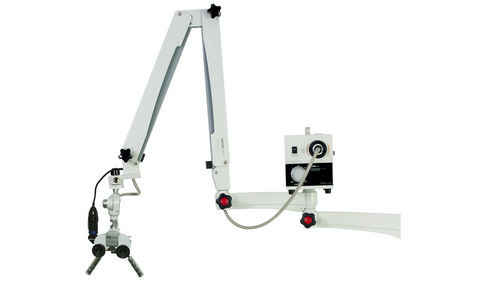

ENT surgery microscope TM03-34

dental surgery microscopewall-mounted

Eye piece 5X Objective Lens F = 250mm Microscope Head Magnification Change / 3-staged magnification system Beam Splitter / Built in llumination system/Light guide system Effective visual field /50-20mm Binocular Tube/Straight type Magnification change /3x, 5x, 8x, (3steps) Illumination Part Illumination field/53mm Angle Adjustment/Coaxial illumination by fiber light guide Light Intensity/0W ~ 150W ( 46.000 Lux ) Lamp/Halogen 15V, 150W Cooling system/Air cooling system Power Supply/Transformer Type Power source/220V, 50-60Hz Arm Part Type/Counter balance system Up-down interval/470mm(Approx.) Length/1810mm(Approx.) Dimension Head/90 x 167 x 88mm(Except handle) Light Source/146 x 240 x 178mm Weight Head &Arm part /13.5kg Light Source/6kg Options Objective Lens/F = 200, 300, 375mm CCD TV Camera Adaptor/C-mount type CCD Camera/IK-C44 &N63CT Floor Stand/Fixed type with casters
