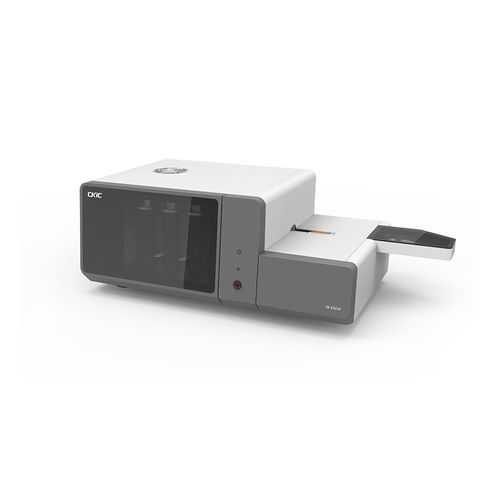

Sulfur analyzer 5E-S32 series

controlflowelectrolyte

CKIC Sulfur Analyzer is used to determine the total sulfur content in coal and liquid fuel. A sample is combusted in a dry air atmosphere; the gases evolved go to a electrolytic cell containing platinum indicating electrodes and platinum electrolysis electrodes. A small current is produced as the sulfur reacts with electrodes; the current is balanced and equivalent to the amount of sulfur present in coal. Standard Configuration: Computer Main analyzer Electrolytic cell Standard Reference Material(GBW) Optional Configuration: Quartz sand for oil testing Tungsten trioxide Silica wool Crucibles Tool kit Features: High Automation The stirring speed and pumping/blowing flow are controlled automatically and make customizable settings as required. With high quality sensors, it can realize precise control. Easy Operation 1. Large volume reagent tube to minimize the maintenance of changing the reagent and the desiccant can be used repeatedly. 2. Multiple controls available, that is, one computer can control several sulfur analyzers at the same time. Additional features for 5E-S3220 Loading sample automatically with robotic arm, high precision and high reliability. 40 samples can be placed per batch, and the samples can be added continuously. Test sequence can be adjusted as required. Specification Sulfur Range 0.01-40% Analysis Resolution - 0.001% Sample Mass - 10-110mg Analysis time - 3-4mins Operation Temp. - 1150°C (coal, coke), 920°C (oil), 1200°C (cement) Temp. Control Precision ±1℃ Temp. Ramp Rate 1℃/s Gas Leakage Detection Automatic Flow Adjustment Automatic Stirring Speed Adjustment Automatic Replacement Reminding of Electrolyte Automatic
