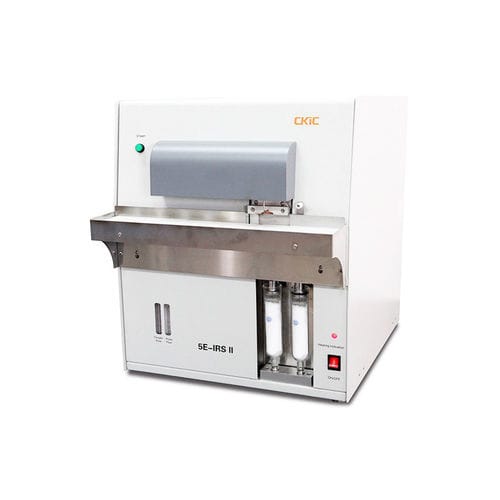

Sulfur analyzer 5E-IRSII

controlSO2for medical research

5E-IRSⅡ Infrared Sulfur Analyzer is used to determine the total sulfur content by infrared absorption, which is widely applied in power plants, coal mines, metallurgy, chemical industry ,commercial inspection, scientific research, etc. Standard Configuration: Computer Main analyzer A/C adapter H2O sorb reagent Silica wool Standard Reference Material(GBW) Crucibles Outer combustion tube Inner combustion tube Boat stop O-ring kit Tool kit Features: Stability and Accuracy 1. Top quality ultra-low drift infrared cell to ensure stability, precision and accuracy. 2. Reliable single Si-C spiral tube heating components. 3. Unique gas tightness structure to avoid the effect of SO2 in air. Easy Operation 1. The sample mass can be automatically sent to the computer by balance connection. 2. Upgraded gas circuit design and reliable components to minimize the maintenance work. 3. Unique “Quick Start” Button to simplify the operation. Specification Conforms to Method - AS 1038.6.3.3, ASTM D1552, ASTM D3177, ASTM D4239, ASTM D5016, ISO 19579, GB/T 25214, GB/T 28732, BS 1016 Max. Sample loading - 1 sample per batch manually Analysis Method - Infrared absorption Analysis Resolution - 0.001% or 10ppm Sulfur Range - 0.01%-30% Customized range available Analysis Time per Sample - ≤120s Analysis Temp. - 1350℃ Temp. Control Precision* - ±1℃ Sample Mass - 200mg-400mg depends on sample condition Power Supply - Single phases, AC220V±10%, 50/60Hz, ≤4kW Net Weight - 60kg Dimensions(L×W×H) - 510mm×700mm×620mm
