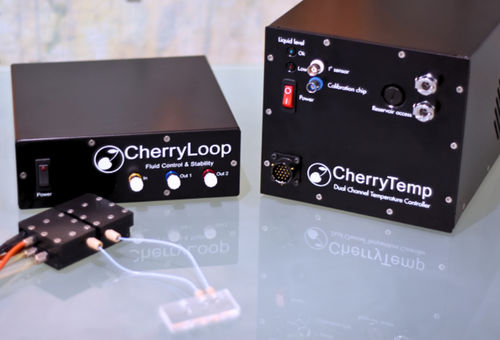

Automatic cell imaging system CherryTemp

laboratory

CherryTemp enables ultra-fast temperature shifts in the 5-45°C range. You can control in real-time your favorite molecular processes, observe dynamic events linked to temperature on live and reveal uncovered mechanisms. Temperature control chamber. 10 seconds shift 0,1°C precision Stability: T°C room compensation Immersion objectives One click: Temperature shift Applications WORM PACK Phase separation pack DROSOPHILA PACK MAMMALIAN PACK PLANT PACK BACTERIA PACK ZEBRAFISH PACK YEAST PACK Overview CherryTemp is a temperature controller based on two independent Peltier channels, allowing for very accurate temperature control and ultra-fast shifts from 5°C to 45°C. A thermalization liquid circulates from a reservoir to the heat exchangers (heating/cooling Peltier elements) where it is thermalized to a target temperature. Once thermalized, this liquid can be quickly injected to a microfluidic device (CherryTemp chip) mounted near the sample. Because of the small thermal mass (the distance between the microfluidic chip and the sample), the temperature transfer is very fast (less than 10 seconds) and of unprecedented accuracy due to a feedback loop control of the room temperature and the heat-sink played by immersion objective lenses. Temp Box Dual Channel Temperature Controller Heat Exchangers Thermalizing Blocs Exchangers Holder Ergonomie holder for the Heat Exchanger Insert & Chip Holders Ergonomie intergration Thermalization Chip Thermalizing chip Tank Bottle Thermalizing fluid container Loop Box Fluid Control &Stability Software One-click shifts Specifications Temperature range 5-45°C (can be extended)
