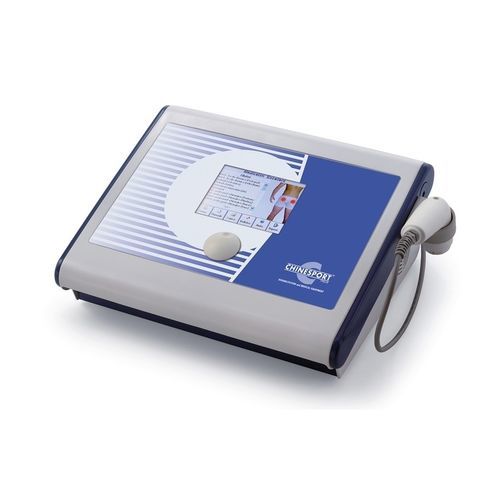

Electric stimulator KOMBY

ultrasound diathermy unittabletopTENS

Equipment for combined therapy - one channel for 1/3 MHz ultrasound therapy and electro therapy with 2 independent channels and 25 wave forms. In ultrasound therapy, a sensor allows the energy to be supplied only when there is contact with the patient, sending the operator a visual and auditory feedback. In electrotherapy, instead, the microcontrollers to the power boards verify in real time that the selected current is deliver correctly and report any possible anomalies. Notice: the Vacuum therapy device can not be connected to this equipment. ACCESSORIES SUPPLIED 4 Electrodes 6x8,5 cm 4 Electrode sponges 8x10 cm 4 Electrodes 5x5 cm 4 Electrode sponges 6x7 cm 2 Elastic band 100x3 cm 2 Elastic band 60x3 cm 1 Handpiece 1/3 MHz 5 cm² 1 2 channels output cable 1 Smart card TECHNICAL SPECIFICATIONS - ELECTROTHERAPY Programmable treatment time: Up to 99 minutes Operation: Low frequency, Medium frequency Waveforms: 25 families of waveforms, 32 total waveforms Operation: Constant voltage, Constant current Peak current (Load resistance 1KOhm) - Pulsed currents: 100 mA - Diadynamic currents: 70 mA - Continue currents - IONOPHORESIS: 50 mA Peak voltage (Load resistance 1KOhm) - Pulsed currents: 100 V - Diadynamic currents: 70 V - Continue currents - IONOPHORESIS: 50V Stored protocols: 40 Storable protocols in the user memory: 100 Storable curve I/t in the user memory: 100 Storable protocols in the smart-card: 200 Storable curve I/t in the smart-card: 100 Storable curve I/t in the smart-card: 2 independent
