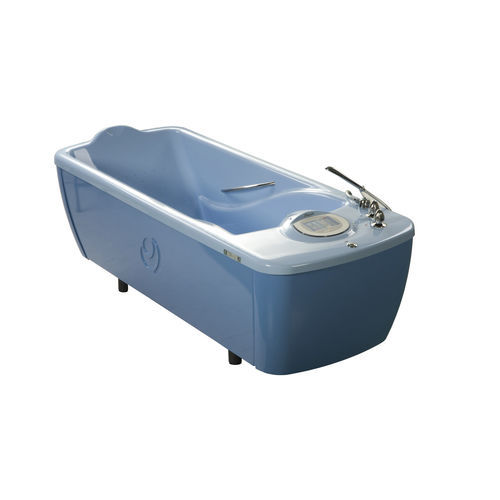

Computer-controlled hydromassage bath with intelligent and automatic functions and simple operation using a large touch screen. The bathtub has a powerful massage system with several massage zones.
PROPERTIES
124 HYDROMASSAGE JETS
The product contains 124 hydromassage jets.
180 AIR MASSAGE JETS
The product contains 180 air massage jets – additional equipment.
5 MASSAGE ZONES
The product contains 5 massage zones.
AUTOMATIC FUNCTIONS
The product has automatic functions.
TECHNICAL PARAMETRES
Maximal water capacity - 300 l
Usefull water capacity - 200 l
Filling time: usefull capacity - 2,5 min
Drainage time: usefull capacity - 2,1 min
Hot and cold water connections - 2×1″
Maximum hot water temperature - 60°C
Max. pump water flow - 450 l/min
Max. pump pressure - 0,35 MPa
Power input - 3500 VA
Power supply - 3 x 400 V / 50(60) Hz
Weight - 140 kg
Dimensions in mm (w x l x h) - 2200 x 870 x 790-815
EQUIPMENT AND FUNCTIONS
CONTROL FUNCTIONS
7" full colour touch screen
Intelligent filling to desired temparature
Optimizing water volume depending on the size of patient
Procedure timer 0-99 min
Sound signal for procedure end
Real time and date display
Automatic plannig of the service check
Fully automated procedures process
28 in build programs
Unlimited No. of the new program creation
Series of the programs up to 5 procedures
Autostart after patient entering the bathtub
Automatic protection against overflow
Automatic water mixing
Intelligent filling from the recycling system
Water filters with automatic flushing
Electronic thermometer of the filling water
Electronic thermometer of the water in tub
Automatic water temperature adjustment during procedure
