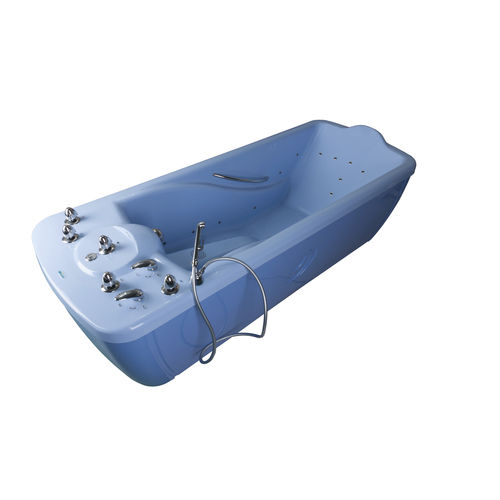

Hydromassage bathtub LAGUNA PLUS BUBBLE

A wholebody hydrotherapy bath tub with manual controls. It is suitable for balenological, hydromassage and airmassage treatments, with possibility of additive water filling. PROPERTIES 25/40 HYDROMASSAGE JETS Depending on the model line, the product contains 25/40 hydromassage jets. 180 AIR MASSAGE JETS The product contains 180 air massage jets – additional equipment. 2 MASSAGE ZONES The product contains a maximum of 2 massage zones. SEMI-AUTOMATIC CONTROL The control of this product is semi-automatic. TECHNICAL PARAMETERS Maximal water capacity - 300 l Usefull water capacity - 200 l Filling time: usefull capacity - 2,5 min Drainage time: usefull capacity - 2,2 min Hot and cold water connections - 2×1″ Additive water connection - 1×3/4″ Maximum hot water temperature - 60°C Max. pump water flow - 433 l/min Max. pump pressure - 0,36 MPa Power input - 3950 VA Power supply - 3 x 400 V / 50(60) Hz Weight - 133 kg Dimensions in mm (w x l x h) - 2200 x 870 x 790-815 EQUIPMENT AND FUNCTIONS CONTROL FUNCTIONS Manual air buttons Manual filling with stainless steel ceramics valves Additional water filling Manual filling from recycling system L Plus, L Plus Bubble Analog thermometer of the filling water Manual discharge into the canalization Manual discharge into the recycling system Manual rinsing of the massgae system Hygienic shower PROCEDURES Balneologic bath Hydromassge Hydromassage zones No. 25 stainless steel jets with the air mix Manual hydromassge intensity adjustment Massage hose with the air mix regulation AIR MASSAGE 180 jets with air blower and system drying Bubble grid connector Bubble grid with 2000 micro holes
