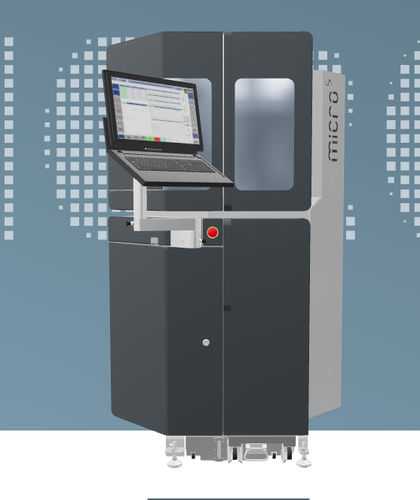

CAD/CAM machining centre Micro5

dentalmedical industry5-axis

Medical technology, watch housing and plates, watch movements, jewelry and components for precision mechanics and micro-mechanics: For any situation in which small, high-value parts require dynamic and high-precision machining, the Micro5 is leading a small revolution. The FACTORY5 machining center with five axes is extremely compact and can be set up very quickly almost anywhere: in the production hall or right at the work station. The »5« in the name Micro5 stands for the ideal 5:1 ratio of machine size to workpiece, for five times lower weight and maximum efficiency: The energy consumption is also significantly lower compared to that of conventional systems, and a high-performance spindle enables very short machining times. For increased autonomy, the Feed5 handling system allows you to automate the loading and unloading of the Micro5. Highlights High-precision 5-axis machining Ultra-compact machine Machining cube max. side length 50 mm High-static rigidity and repeat accuracy Outstanding thermal stability High-speed cutting Low energy consumption < 500 W Precious metal recovery Magazine with 60 tools in the working area Palletizing with up to 6 pallets in the working area Easy access for service and maintenance Excellent view of the production process Easily automated with Feed5
