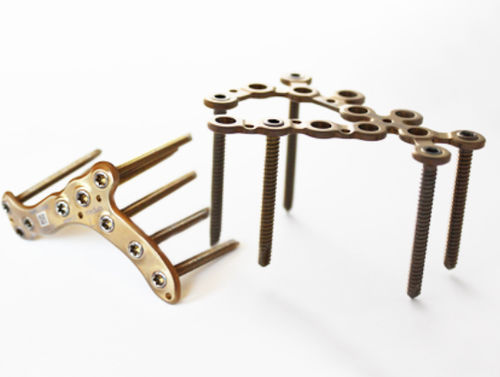

Calcaneus compression plate 3.720 series

lockingmetallic

Design aligned with anatomy • optimized anatomical profile • fit to a wide range of anatomies • facilitated anatomical reduction Multiple plate options • system consists of 3 types of plates: - small - medium - large Cuts of superior plate edge • independent screws for additional articular surface support Chamfered plate borders • minimized soft-tissue irritation Beveled tip • easy percutaneous insertion Up to 10 anatomically directed screws • direction parallel to articular surface for direct subchondral insertion • avoided collisions with articular surface • enhanced fixation in multi-fragment fractures Locking hole design • the screws heads do not protrude above the surface of the plate what significantly reduces tissue irritation • increased strength of the screw-to-plate threaded connection • bottom extrusion reduces surface contact area with the bone K-wire holes • provisional plate positioning Multiple screw options • locking and VA locking screw gives multiple configuration for individual cases Variable-Angle screws • high strength cobalt alloy material • compatible with all locking holes • 30° angulation cone • VA screw re-lock possibility
