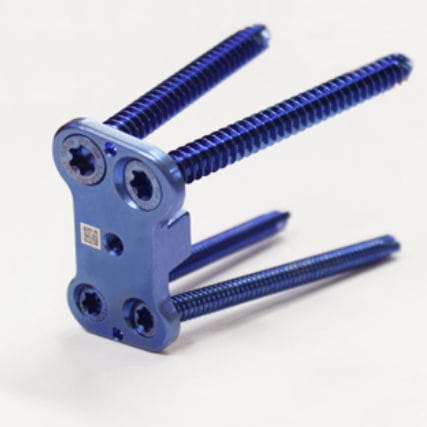

Tibia compression plate 3.706 series

proximallockingtitanium

Design aligned with anatomy • optimized anatomical profile • fit to a wide range of anatomies • facilitated anatomical reduction Multiple plate options • left and right plates • wedge size from 3mm to 17.Smm Chamfered plate borders • minimized soft-tissue irritation 4 anatomically directed screws • proximal holes accept 6.5mm cancellous screw, distal holes accept 5 mm screw • divergent to improve plate and fixation stability • avoided collisions with articular surface Locking hole design • the screws heads do not protrude above the surface of the plate what significantly reduces tissue irritation • increased strength of the screw-to-plate threaded connection • bottom extrusion reduces surface contact area with the bone K-wire holes • provisional plate positioning • mimic periarticular screws trajectory
