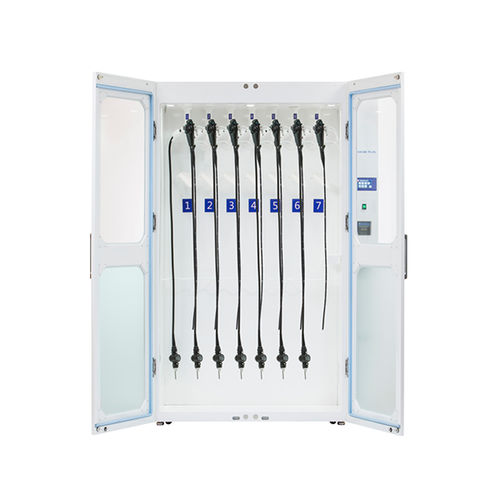

Data management and storage system ENDOCAB PLUS

for endoscopeswith barcode scanner

Security, Monitoring and Traceability Data management system with barcode scanner Channel air distributor with HEPA filtered air Internal air circulation with temperature controller in cabine Air curtain protecting cleaned air inside HST temperate glass window 4.3” color TFT LCD with touch screen display Various configuration by user friendly software Safety key lock for control touch panel Validation process with printer SPECIFICATION Materials Power Coating with Stainless Steel 304 Window Glass HST Temperate Glass Dimension W 1380 x D 510 x H 2140 (mm) Caster 2" Urethane and Level Support Controller Display: 4.3" Color TFT LCD with Touch Screen Key Lock for Controller Touch Panel Touch Panel Safety Lock Safety Pictograph: Lock/Unlock Scope Holder 7 Hangers with Coated 2nd Stay Holder x 7 Scope Arrangement Wave Holder Lamp: High Brightness LED type, 220Vac x 3EA - Manual ON - Manual OFF - AUTO: ON @ Door open, ON for setting time @ Door close UV Lamp Optional (User Selectable: Lamp ON/OFF)/F6T5BLB 325NM Temperature Control in Cabinet About ~40℃ Channel Connection Ports 1 port @ Scope
