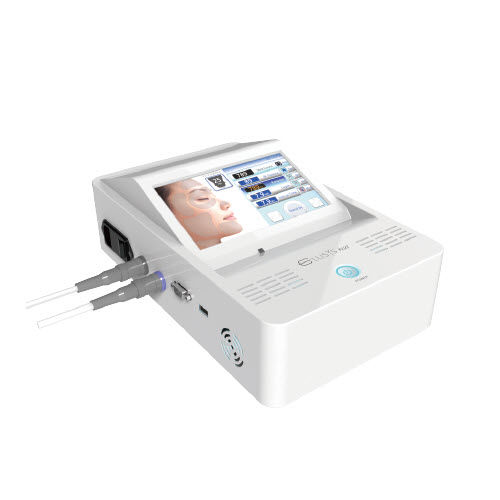

Mechanical microneedling unit ELLISYS PLUS

ELLISYS PLUS CWM-930M Micro-needle Therapy System (MTS) FEATURE -Insulated Micro-needle (49 and 14pin) -Non-lnsulated Micro-needle (25pin) -Optimized needle application range (7.8mm X 7.8mm) -Step Motor System -Light weight of Hand probe -Gold-plating Micro-needle -Needle depth control with high precision (0.5mm~3.0mm) -Safety needle system -Easy detachable nedle cap -Proper size of Micro-needle thickness Notice This device is designed to use for dermal coagulation for acne scar treatment of human using radio frequency current. Specification POWERAC 100~240V, 50/60Hz DISPLAY7 Inch TFT Touch Color LCD OUTPUT POWER10W EMISSION TIME100ms~900ms (Control Unit : 100ms) NEEDLE PENETRATING DEPTH0.5mm~3.5mm (Control Unit : 0.1mm) RF FREQUENCY1MHz NUMBER OF NEEDLE PIN25Pin (5×5), 49Pin (7×7), 14Pin (2×7) NEEDLE LED25Pin(Red), 49Pin(Blue), 14Pin(Red) DIMENSION(mm)204×336×125 (Case : 500×350×145) WEIGHT3.5Kg
