Temperature control unit AEROCONNECT 1B

pressurepumpmonitoring

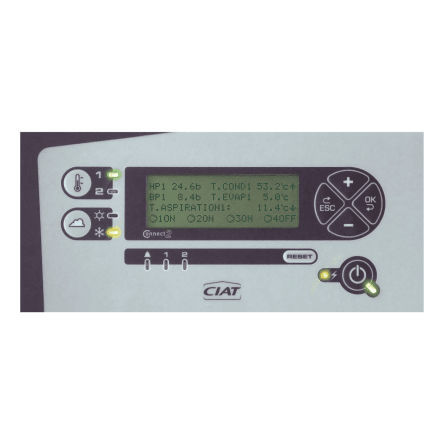

AeroCONNECT 1B is a control module for dry coolers and air-cooled condensers. Control module for dry coolers and air-cooled condensers Main board Backlit LCD, status LEDs Pressure sensor and/or temperature sensor depending on the application CPU board and CIAT-defined software Ergonomic keypad Multilingual Features Unit configuration Reading of unit states Monitoring of chilled-water or hot-water temperatures Two setpoint values Control Control of the unit's devices (fans, associated free-cooling valves etc.) Control of the AEROFRESH™ misting function Control of compressor stages or electrical auxiliary Optimization of the stages for improved efficiency Control of safety devices Operating status and fault LEDs, fault history Communication with CONNECT2 and XTRACONNECT2 controllers fitted to CIAT heat pumps and chillers Optimisation of Aero and heat pump/chiller system operation ModBus-JBus protocol on RS-485 & ethernet as standard LonWorks and BacNet (IP or MSTP) protocol optional Backlit LCD User-friendly, trouble-free operation, easy-to-read screen Two programmable setpoints Troubleshooting Many self-regulating functions Continuous monitoring of operating settings Balancing operating times Self-adjusting control of safety components Many remote-control options Communication interfaces, RS-485 output, open BMS communications protocol (standard- ModBus and BacNet optional)
