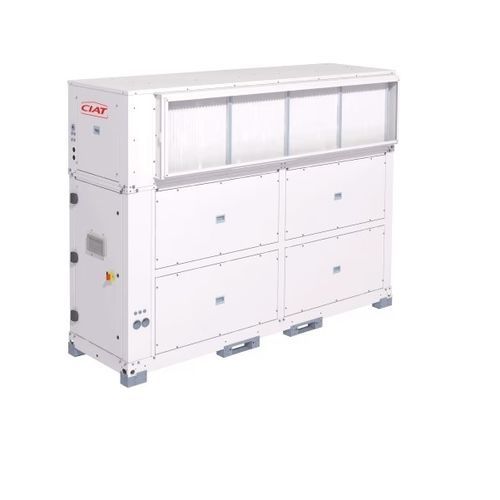

Air/air heat pump ISPV

reversible

ISPV reversible heat pumps are vertical air-to-air units consisting of two modules (indoor and outdoor), which can be supplied in Package or Split version. A vast number of options makes it possible to meet many operating requirements. These units are equipped with hermetic scroll-type compressors in tandem design, as well as electronic plug-fans for the outdoor and indoor modules, achieving a high seasonal performance. Use They are units designed for indoor installation with their two modules attached to a network of air distribution ducts. Its cabinet design has a great adaptability, and allows the cooling and heating of premises where the installation on the roof is too complex or it is necessary to respect the architecture of the building. Features Package and split versions EC plug-fans High efficiency refrigerant circuits Extension of limits, outdoor temperature from -15°C to 48°C Simple and small-size assembly with mixing box for free-cooling New options : Zoning, Heat recovery coil and others Vectic smart control system Reduced height < 2.2 m in Package version Advantages High energy efficiency & environmental responsibility The ISPV range goes beyond Ecodesign requirements. Up to 30% savings. SEER up to 4,59 SCOP up to 3,41 We have designed the ISPV range with specific features to reduce energy consumption to the minimum for each application: variable ventilation, low pressure drop filters and freecooling. Adaptability Package and Split versions fit perfectly all types of buildings. Ideal for urban environments where installation on the roof is too complex Reduced height (< 2,200 mm) in the Package version
