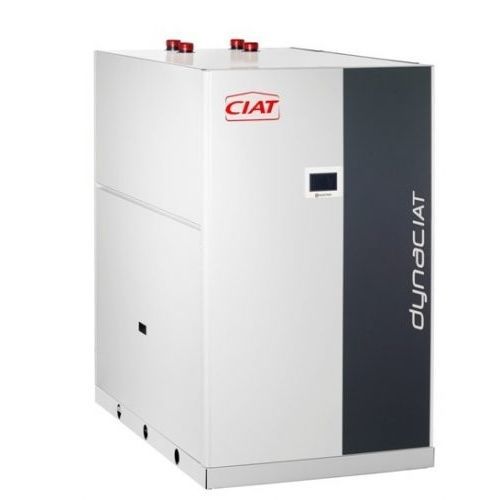

Water-cooled water chiller DYNACIAT™ LG

The latest generation of DYNACIAT water chillers and heat pumps are the perfect solution for all cooling and heating applications in the offices, healthcare, industry, administration, shopping centers and collective housing markets. Refrigerant: R-410A Compressor type: Scroll Cooling capacity: 25 to 190 kW Heating capacity: 29 to 230 kW Range 17 models available With water-cooled condenser Hydraulic version available in option Features R-410A refrigerant Compact unit with reduced footprint Unit fully encased in housing constructed of detachable coated metal panels One or two independent refrigerant circuits Electronic(s) expansion valve(s) One to four new-generation, high-efficiency scroll compressors Water-cooled brazed plate heat exchangers Water flow control Electrical cabinet equipped with remote control transformer, safety switch Control module with CONNECT TOUCH microprocessor and a large range of auto adaptive functions Interface with intuitive multilingual 4,3’’ color touchscreen Web server (IP) for access to the interface screen Communication with the BMS via the ModBus/Jbus protocol as standard (LON and BacNet optional) Advantages Excellent EER and ESEER energy efficiency thanks to high-efficiency refrigerant and high-performance exchangers and compressors Uses a non-ozone-depleting refrigerant Very low sound level, no vibrations Easy installation: small enough to fit against a wall Unit tested in factory and delivered ready for use Hydraulic connections located at top of the unit for quick installation regardless of the layout of the plant room Electrical power supply without a neutral conductor: transformer provided for in cabinet
