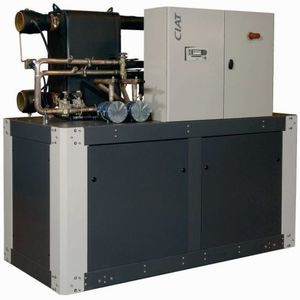

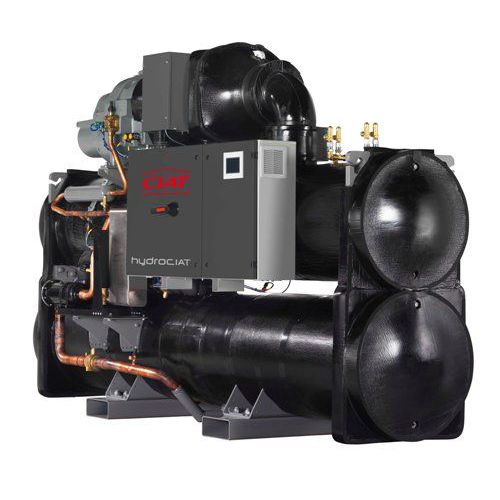

Water-cooled water chiller HYDROCIAT™ LW ST

HYDROCIAT water-cooled chillers & heat pumps ranges provide an optimal solution for all cooling applications used for the offices, healthcare, administration, retail and collective housing sectors. Refrigerant: R-134a Compressor type: Screw Cooling capacity: 273 to 1 756 kW Heating capacity: 317 to 1 989 kW Range 31 models from size 708 to 4 628. Two energy versions available: Standard energy version (ST), 20 sizes High energy efficiency version (HE), 11 sizes Two sound level versions available: Standard Low noise  Features R-134a refrigerant Compact equipment with a small footprint for installation indoors Frame made of RAL 7024 painted sheet metal paneling 1 or 2 independent refrigerating circuits Twin screw compressor(s) equipped with a discharge silencer Shell and tube type evaporator equipped with a water flow controller Shell and tube water-cooled condenser with integrated oil separator Electrical cabinet equipped with remote control transformer and safety switch Control module with CONNECT TOUCH microprocessor and a large range of auto adaptive functions Interface with intuitive multilingual 5’’ colour touchscreen Web server (IP) for remote access to the interface screen and fault warning emails Technical documentation integrated into the controller Communication with the CMS via the ModBus/JBus protocol as standard (LON and BacNet optional) Reduced energy consumption > high performance and efficiency Reduced nuisance noise > low sound levels Two acoustic performance levels (standard and low noise) ensuring all sound level constraints can be met
