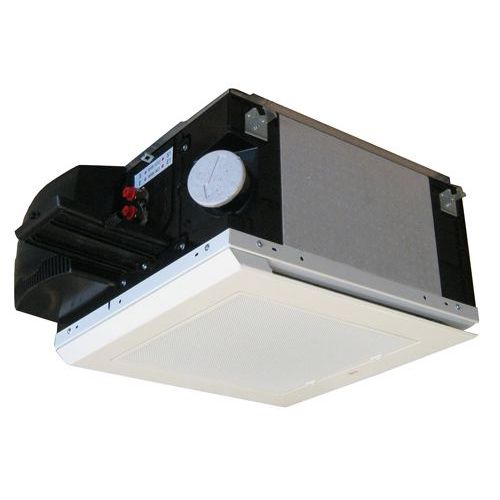

Cassette fan coil unit COADIS LINE 600™

ceiling-mounted

Designed for comfort, IAQ and eco-efficiency, the COADIS LINE cassette is the solution to meet today's environmental impact requirements while maintaining a high level of comfort and aesthetics. COADIS LINE is the perfect solution for offices, open-spaces, retails and hospitality applications. Cooling capacity: 1 to 6 kW Heating capacity: 2 to 10 kW High efficiency diffusion thanks to Coanda effect IAQ EPURE® function filter Range 7 sizes 2 pipe, 2 pipe + electrical heater, 4 pipe Flexiway: 180° or 360° single-slot diffusion on the same type of frame Features COADIS LINE is the perfect mix for energy efficiency, thermal and acoustic comfort, IAQ and aesthetic. 3 motors available: HEE 2-10V energy efficient motor 2-10V control HEE ON/OFF energy efficient motor 3-speed control AC 5-speed asynchronous motor Thermal comfort: Highly reactive system to reach quickly the desired temperature. Coanda effect: the single-slit peripheral air outlet has a slim opening and specific internal profile to increase the initial speed of the air leaving the diffuser. The high speed of the air stream induces a negative pressure which “sticks” it to the ceiling (thereby avoiding direct air flow onto the occupants) and an induction phenomenon which attracts the ambient air and re-injects it into the stream of air. The mixing rate and the range and coverage of the air stream are improved, reducing the thermal phenomena (residual air speed, asymmetric temperatures, radiation from walls, and so on) that cause discomfort in occupied spaces. Anti cold shower deflectors integrated in the insulation that eliminates cold air fallout between two cassettes for greater comfort.
