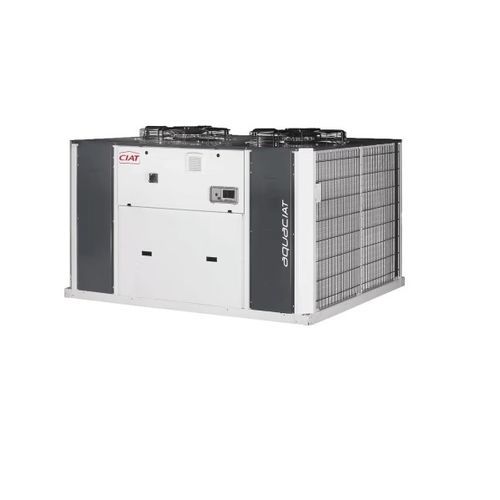

Air-cooled water chiller AQUACIAT™ LD R-32

The AQUACIAT air-cooled chillers provide an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing. Refrigerant: R-32 Compressor type: Scroll Cooling capacity: 40 to 160 kW Range Chiller with or without hydraulic module 2 different sound level versions: Standard Very low noise (LN) 3 hydraulic versions: Base unit Version with hydraulic pump (option) Version with hydraulic pump and water buffer tank (option) 12 available sizes from 150R to 600R Features The AQUACIAT air-cooled chillers provide an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing. These units are designed for outdoor installation and do not require protection from adverse weather conditions. This new range is designed with the non-ozone depleting refrigerant R-32 and thereby meets the most demanding environmental protection by reduce the carbon foot print up to -77% and high seasonal energy efficiency (SEER) requirements, +10% versus R-410A solution. R-32 refrigerant Compact design and small footprint for outdoor installation RAL 7024 - 7035 sheet metal frame 1 or 2 refrigerant circuits Electronic expansion valves New generation, high efficiency scroll compressors High efficiency brazed plates heat exchangers High efficiency shell and tubes heat exchangers All-aluminum micro-channel high efficiency air-cooled condenser Propeller fan with optimized profile composite blades AC fixe speed fan motors (base unit) Variable speed fans (option) Electrical cabinet equipped with remote control transformer,
