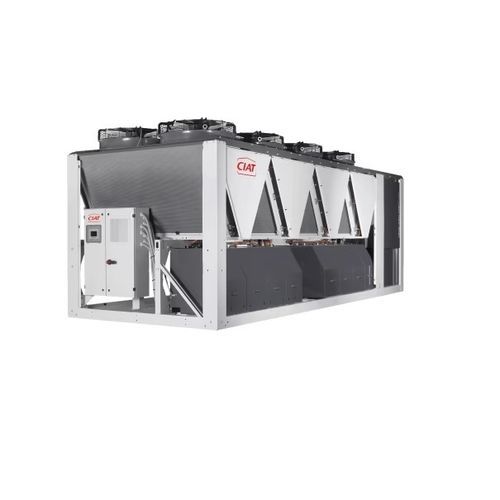

Air-cooled water chiller AQUACIAT POWER™ LD R-32

The AQUACIATPOWER air-cooled chillers provide an optimal solution for all cooling applications in offices, healthcare facilities, industries, administration and commercial premises and collective housing. Refrigerant: R-32 Compressor type: Scroll Cooling capacity: 170 to 940 kW Range Chiller with or without hydraulic module 3 energy versions Standard efficiency version High nominal efficiency version (option) High seasonal efficiency version (option) 3 different sound level versions Standard Very low noise (VLN) Ultra low noise (ULN) 3 hydraulic versions Base unit With hydraulic pump (Option) With hydraulic pump and water buffer tank (Option) Available in 19 models sized from 602R to 3 500R Features The AQUACIATPOWER air-cooled chillers provide an optimal solution for all cooling applications in offices, healthcare facilities, industries, administration and commercial premises and collective housing. These units are designed for outdoor installation and do not require protection from adverse weather conditions. This new range is designed with the non-ozone depleting HFC refrigerant R-32 and thereby meets the most demanding environmental protection by reducing the carbon foot print up to -80% and high seasonal energy efficiency (SEER) requirements, +10% versus R-410A solution. R-32 refrigerant Compact design and small footprint for outdoor installation RAL 7024 - 7035 sheet metal frame 2 refrigerant circuits Electronic expansion valves New generation, high efficiency scroll compressors High efficiency brazed plates heat exchangers High efficiency shell and tubes heat exchangers All-aluminum micro-channel high efficiency air-cooled condenser
