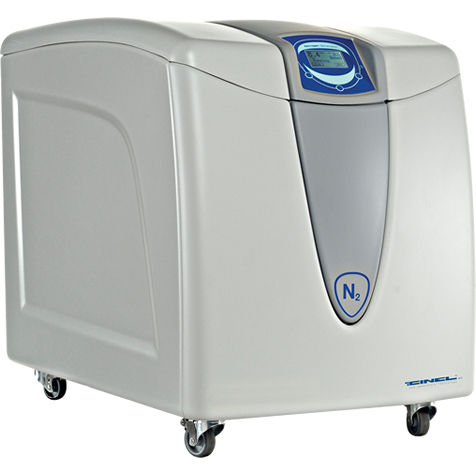

Nitrogen generator ZEFIRO combinedairhumidityfor LC/MS
Add to favorites
Compare this product
Characteristics
- Gas type
- nitrogen, air, humidity
- Applications
- for LC/MS
- Configuration
- mobile
- Technology
- membrane
- Output
15 l/min, 35 l/min
(3.9626 us gal/min, 9.246 us gal/min)- Output pressure
4.2 bar, 7.2 bar
(60.92 psi, 104.43 psi)- Gas purity
99 %
- Rated capacity
1,800 W
(2.4 hp)
Description
ZEFIRO combined Nitrogen Generator is specifically designed to
supply Nitrogen & Dry Air for all the ABI SCIEX LC/MS that need Nitrogen & Air.
The Nitrogen generator uses membrane Technology to produce nitrogen gas at
specific purity required.
The internal oil free air compressor which is firstly pre filtered provide also
to the exhaust air flow which is treated by a drying filter.
INPUT VOLTAGE - 230 V – 50/60 Hz
WEIGHT - 130 Kg
PRESSURE ACCURACY - 0.1 bar (± 0.5 %)
MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px
INDEX OF PROTECTION - IP20
TEMPERATURE - 5°C to +30°C
RELATIVE HUMIDITY - 0-80%, non condensing
SOUND PRESSURE LEVEL - 55 dB(A)
OUTPUT PORTS - N° 02 G 1/4
CASE DIMENSIONS - width 48 cm, height 70 cm, length 84 cm
