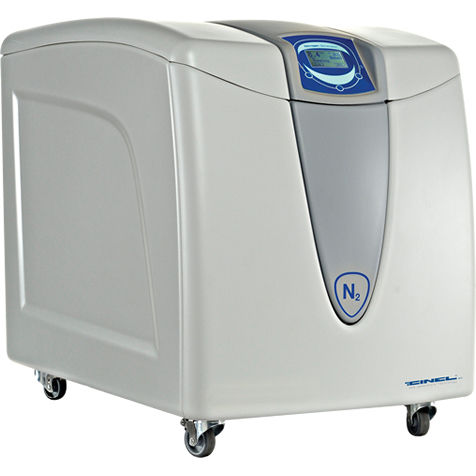

Nitrogen generator ZEFIRO MP

airoxygenhumidity

ZEFIRO Nitrogen Generator “MP” series is specifically designed to supply Nitrogen & Exhaust Air for the AGILENT MP-AES. The Nitrogen generator uses pressure swing adsorption technology (PSA) This system uses carbon molecular sieve (CMS) which selectively adsorbs oxygen and residual water vapor molecules under high pressure, while allowing Nitrogen to pass through. The internal oil free air compressor which is firstly pre filtered provide also to the exhaust air flow which is treated by a drying filter. INPUT VOLTAGE - 230 V – 50 or 60 Hz WEIGHT - 150 Kg PRESSURE ACCURACY - 0.1 bar (± 0.5 %) MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px INDEX OF PROTECTION - IP20 TEMPERATURE - 5°C to +30°C RELATIVE HUMIDITY - 0-80%, non condensing SOUND PRESSURE LEVEL - 55 dB(A) OUTPUT PORT - N. 02 G 1/4 CASE DIMENSIONS - width 48 cm, height 70 cm, length 84 cm
