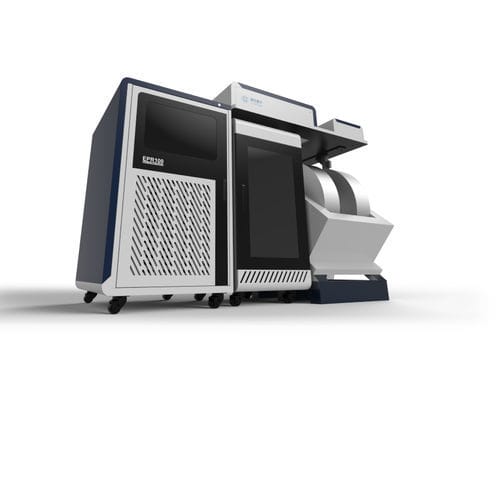

EPR spectrometer EPR100

for researchbenchtophigh-resolution

CIQTEK X-band pulse electron paramagnetic resonance (EPR or ESR) spectroscopy EPR100 supports both continuous-wave EPR and pulse EPR functions, satisfying general CW EPR experiments while performing T1 /T2 / ESEEM (electron-spin echo envelope modulation) / HYSCORE (hyperfine sublevel correlation) and other pulsed EPR tests, which can achieve higher spectral resolution and reveal Ultra-fine interactions between electrons and nuclei, thus providing users with more information about the structure of matter. *Optionally equipped with a 4-300 K variable temperature device to enable detection of paramagnetic substances at ultra-low (high) temperatures. *Accessories: Liquid nitrogen variable temperature with cryostat; Liquid helium variable temperature; 4 mm outer diameter sample tube; Goniometers; Electrolytic cell; Irradiation system; Flat cell. Features Diversified Experiment Scenarios Meet different experimental needs (light, low temperature, corner, etc). Excellent Magnetic Field Performance A highly uniform and stable magnetic field with precise magnetic field scanning control and over-zero field scanning technology. High-performance Pulse Probe Sequence generator with an unlimited number of pulses, suitable for kinetic decoupling techniques with a very large number of pulses. High-power Pulse Generator Up to 450 W pulse power with high-performance pulse EPR probe for more efficient narrow pulse excitation. High-resolution Microwave Pulse Technology Microwave pulse time resolution up to 50 ps for improved spectral line resolution in pulse mode.
