CT scan test phantom 037

brain

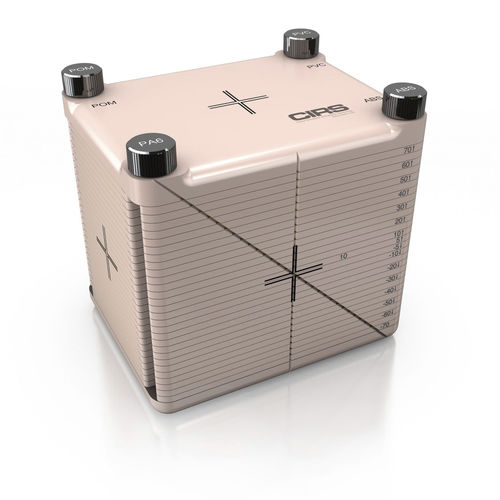

Our Multi-Lesion Brain QA Phantom (Model 037) provides a unique solution for fast, comprehensive film dosimetry quality assurance for single isocenter plans with multiple targets. The phantom may be used for thorough validation of multi-lesion treatment methods. Our phantom is rectangular in shape with rounded corners to minimize CT artifacts and large enough in size to cover brain anatomy variations. Linear attenuation of simulated brain tissue is within 1% of real tissue from 50 keV to 15 MeV. The Model 037 has two pairs of asymmetrical embedded fiducial markers and a central fiducial split in half at the phantom isocenter to aid you during pre-irradiation imaging. You can also align the imaged fiducials (from a CBCT, ExacTrac®, or kV images) and compare them to the reference image of the phantom in order to make more accurate shifts of the phantom with the linear accelerator couch top. The phantom receives radiochromic film to as many as 29 locations in 5mm increments. Pre-loaded polyester film sheets allow flexibility in film placement without affecting sensitive geometry. External grooves and marking on the phantom sides help with easy film positioning at only desired locations to cover specific lesions. Film allows multiple planning target volumes (PTVs) to be reviewed individually. CIRS offers pre-cut EBT3 film designed specifically to fit the Model 037. Four assembly rods, each made of different materials, allows for orientation and registration to ExacTrac ® systems.
