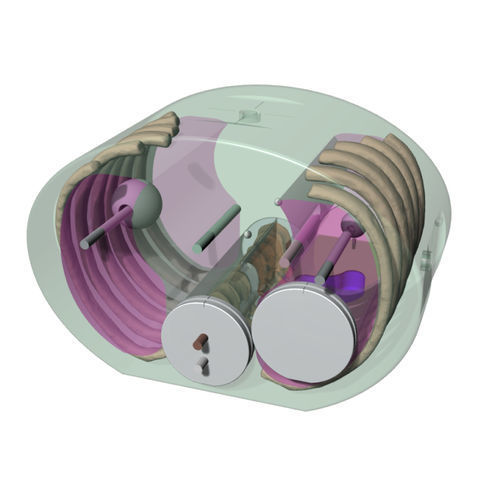

Radiation therapy test phantom E2E®

lungthoraxspine

The high dose per fraction associated with SBRT necessitates a high degree of accuracy in target localization and dose delivery. Small errors can result in significant under treatment of portions of the tumor volume and over dosage of nearby normal tissues. The E2E ® SBRT Phantom with Removable Spine provides a means to check the entire treatment chain during commissioning and routine QA. Our Model 036S-CVXX-xx* is an anthropomorphic thorax body containing articulated spine, ribs, and lungs. All materials are suitable for use in kV and MV energies. The thorax section contains two lung tumor volumes with ionization chamber cavities in the center of each target*. The phantom also includes a lung insert with an irregular-shaped lung target. The proximity of the lung target to the vertebral body allows clinicians to measure high-resolution dose distribution to the target and dose to the spinal cord in a single delivery. The surface of the thorax body is machined with concentric circle targets and alignment marks for daily system checks. Our Model 036S has more options for dose verification in the spine as an organ at risk, including a removable split spine. The removable spine facilitates the use of radiochromic film in the sagittal orientation in the inferior half of the spine rod. Ion chambers cavities are located in the spinal cord and the vertebrae in the superior half of the removable spine rod. Alignment marks at 0, 90, 180 & 270 degrees allow for consistent re-positioning. Precision-cut films with integral registration holes are available for both the lung insert and spine insert.
