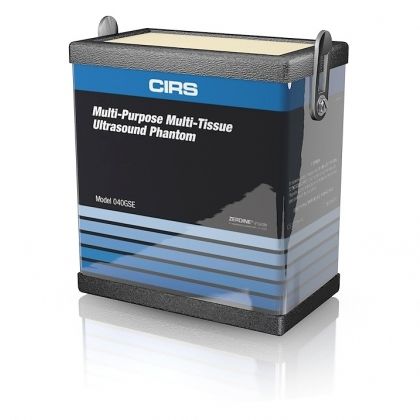

Ultrasound imaging test phantom 040GSE

general purpose

Test the full range of standard diagnostic ultrasound probes (2 MHz to 18 MHz) Dual attenuation design provides challenging testing environment for high sensitivity probes Acoustic properties comply with IEC Technical Standard 62736 Detachable water wells allow for testing curvilinear and endocavity probes Only general purpose QA phantom on market with elasticity targets Ensure over ten years of reliable use through reinspection and repair services Includes best in industry four-year warranty The CIRS Model 040GSE Multi-Purpose, Multi-Tissue Ultrasound Phantom is the most complete solution available for performance and quality assurance testing. Its dual frequency design and detachable water wells allow testing of most transducer shapes – including curvilinear and endocavity – and frequencies. It is also the only QA phantom on the market that provides both elasticity targets and all the standard B-mode imaging test objects. The phantom is made of CIRS’ proprietary Zerdine ® hydrogel polymer, which has been formulated to provide tissue mimicking properties including compatibility with harmonic imaging. To maximize phantom lifetime, this gel is contained in a rugged ABS plastic housing with a Saran-based laminate membrane. CIRS ultrasound QA phantoms come standard with a robust housing, carry case, 48-month warranty, and user guide.
