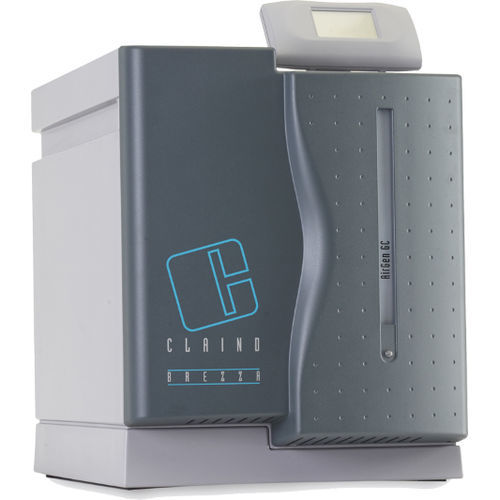

Zero air generator AirGen

compressed airhumidityfor gas chromatography

Platinum Palladium HC system to completely remove the hydrocarbons (HCT < 0.1 ppm) Excellent for NPD and FID for an absolutely stable, noise-free base line Adapted to support up to 8 FID Ready to be connected to the dedicated AirComp compressor Parallel connection up to 4 stackable tower configuration generators CPU with Touch Screen Display, which can be linked to the generators with CAN-BUS, allows monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters Technical specifications FLOW RATE - 3000 NmL/min ± 10% a 2000 m slm TECHNOLOGIES EMPLOYED - PSA CLAIND + catalytic reactor Pl/Pd PURITY - HCT < 0,1 ppm MOISTURE - < -50 °C dew-point ATP ± 2°C ATP AIR INPUT CHARACTERISTICS - Particulate ≤ 0,01 mm Oil Vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP Min pressure: 8 bar/115 psi Air flow rate: 8 Nl/min ELECTRICAL SUPPLY - 115 Vac ±10% 60 Hz 250W 230 Vac ±10% 50 Hz 250 W INDEX OF PROTECTION - IP20 NOISE - < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle OPERATING TEMPERATURE - 5°C fino 35°C (41°F fino 95°F) ENVIRONMENTAL HUMIDITY - max 90% without condensation MAX ALTITUDE - 2000 m slm DIMENSIONS - Height : 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” WEIGHT - 28 kg/62 lbs PNEUMATIC CONNECTIONS - Compressed air inlet: G 1/8” female Purified air output: G 1/8” female
