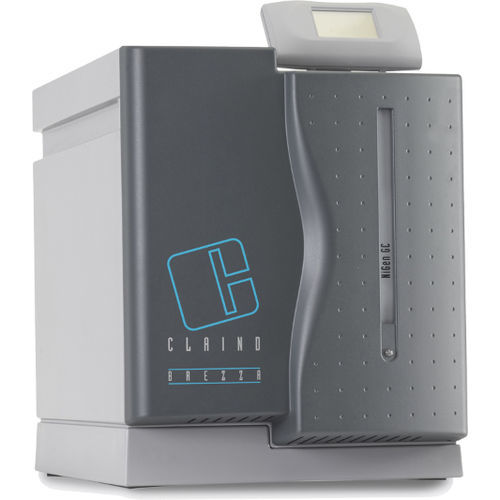

Nitrogen generator NiGen GC/HC

for gas chromatographystackablePSA

Available in basic and HC version so the hydrocarbons can be completely removed Capable of supporting up to 12 make up FID/ NPD, up to 7 ECD or 5 S/S Ready to be connected to the dedicated AirComp compressor Parallel connection up to 4 stackable tower configuration generators CPU with Touch Screen Display, which can be linked to the generators with CAN-BUS, allows monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters Technical specifications FLOW RATE - 500 Nml/min ± 10% a 2000 m asl MOISTURE - < -50 °C dew-point ATP ± 2°C ATP AIR INPUT CHARACTERISTICS - Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP Air flow rate: 6 Nl/min ELECTRICAL SUPPLY x NiGen GC - 115/230 Vac ±10% 60-50 Hz 50 w ELECTRICAL SUPPLY x NiGen GC HC - 115 Vac ±10% 60 Hz 200 W INDEX OF PROTECTION - IP20 NOISE - < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle OPERATING TEMPERATURE - 5°C - 40°C/40°F - 100°F ENVIRONMENTAL HUMIDITY - max 90% without condensation MAX ALTITUDE - 2000 m asl DIMENSIONS - Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” WEIGHT - GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs PNEUMATIC CONNECTIONS - Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female
