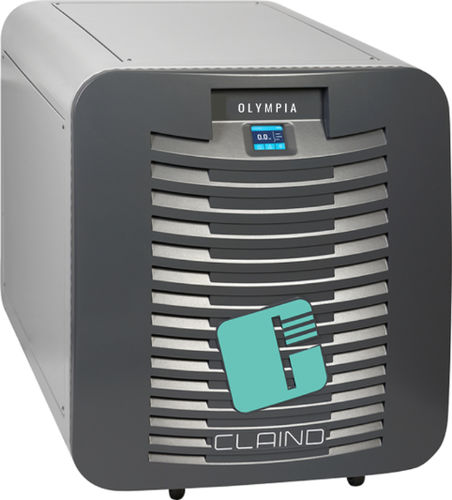

Medical air compressor OLYMPIA A200-1

scroll1-workstationoil-free

Silent: noise level reduced to a minimum thanks to special soundproof and antivibration devices Scroll Oil Free Compressor Speed controlled electronically from the compressor head to save energy and reduce maintenance Monophase power supply 230 Vac 50/60 Hz Output Dew Point up to - 60°C Internal tank and possibility of adding an external one All control devices are compact and complete Integrated with MOD-BUS and MQTT communication protocols that allow remote controls from PC or smart phone, and monitoring of the generator’s functional parameters in real time Application For LCMS, lab pneumatics , GC - TOC, Atomic Absorption and all analyzers looking for oil free dry air Technical specifications FLOW RATE 190 Nl/min (210 l/min FAD) @ 7 bar TECHNOLOGIES EMPLOYED Oil free SCROLL compressor AIR OUTPUT CHARACTERISTICS Particulate = 0,01 mm Moisture up to -60°C Dew point ATP @ 9,5bar 50Nl/min ELECTRICAL SUPPLY 230 Vac ± 10% 50/60 Hz 2,5kW INDEX OF PROTECTION IP20 OPERATING TEMPERATURE 5°C - 40°C/40°F - 100°F STORAGE TEMPERATURE 5°C - 50°C/40°F - 125°F ENVIRONMENTAL HUMIDITY max 90% without condensation MAX ALTITUDE Tested up to 2000 m from the sea level ENVIRONMENT HEAD DISPERDED 2340 J/sec PNEUMATIC CONNECTIONS N. 2 Purified air output: G1/2” female Condensate drain PVC pipe Øe 9 mm and collection tank ELECTRICAL CONNECTION 5 mt power supply cable; Plug IEC309, 2-poles plus blue earth 32° IP44 according to standards IEC 60309-1 and IEC 60309-2 DATA CONNECTOR Ethernet MQTTS, MOD- BUS data communication protocol; RJ45 cable - WiFi WARRANTY 2 years from Delivery
