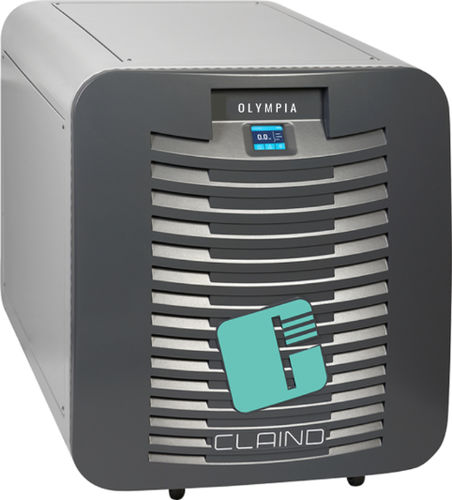

Medical air compressor OLYMPIA N70-1

scroll1-workstationoil-free

Quiet: noise level reduced to a minimum thanks to special soundproof and anti-vibration devices Speed controlled electronically from the compressor head to save energy and reduce maintenance Monophase power supply 230 Vac 50/60 Hz Output Dew Point up to - 40°C Two built-in air reservoirs of 15 liters Compact and complete with all control devices Integrated with MOD-BUS and MQTTS communication protocols, RJ45 cable -and WiFi, that allow remote controls from PC or smart phone, and monitoring of the generator’s functional parameters in real time through the Claind4You IoT platform. Application For LCMS single or multiple installation, Sample Preparation and all analyzers looking for dry nitrogen Technical specifications FLOW RATE Up to 80 Nl/min AIR COMPRESSOR TECHNOLOGY Oil free SCROLL compressor OUTPUT PRESSURE 6 ÷ 9,5 bar ELECTRICAL SUPPLY 230 Vac ± 10% 60 Hz 2,5kW PROTECTION INDEX IP20 OPERATING TEMPERATURE 5°C - 40°C/40°F - 100°F STORAGE TEMPERATURE 5°C - 50°C/40°F - 125°F ENVIRONMENTAL HUMIDITY max 90% without condensation MAX ALTITUDE Tested up to 2000 m from the sea level WEIGHT 155 kg/330 lbs THERMAL DISPERSION 2340 J/sec PNEUMATIC CONNECTIONS Nitrogen outlet G1/2” female Condensate drain PVC pipe Øe 9 mm and collection tank ELECTRICAL CONNECTION 5 mt power supply cable; Plug IEC309, 2-poles plus blue earth 32° IP44 according to standards IEC 60309-1 and IEC 60309-2 DATA CONNECTOR Ethernet MQTTS, MOD- BUS data communication protocol; RJ45 cable - WiFi WARRANTY 2 years from Delivery For LCMS single or multiple installation, Sample Preparation and all analyzers looking for dry nitrogen
