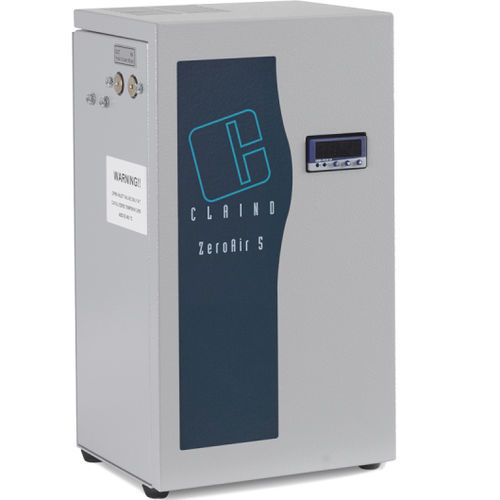

Zero air generator

for gas chromatographybench-topcatalytic reactor

Excellent for FID and FPD, guarantees a clean base line with no fluctuations Double installation capability: on workbench or wall High efficiency Platinum Palladium HC system for complete hydrocarbon (HCT < 0.1 ppm) removal at low catalysis temperatures for a stable, noise-free base line Adapted to support from 14 up to 55 FID Can be integrated with the dedicated AirComp compressor Catalyzer temperature indicator Applications In GC as flame oxidizer in FID and FPD detectors Process/Environmental Analysers for FID, THC, NOX, BTX and SOX Technical specifications FLOW RATE - ZeroAir 5: 5 Nl/min ± 10% a 2000 m asl ZeroAir 20: 20 Nl/min ± 10% a 2000 m al TECHNOLOGIES EMPLOY - Platinum-Palladium catalytic reactor EFFICIENCY - Total hydrocarbons residual with catalyzer < 0,1ppm OUTPUT PRESSURE - 0 - 10 bar/0 - 145 psi ± 3% AIR INPUT CHARACTERISTICS - Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ -15° C dew point ATP ELECTRICAL SUPPLY - ZeroAir 5 115 Vac ±10% 60 Hz 180W 230 Vac ±10% 50 Hz 180W ZeroAir 20 115 Vac ±10% 60 Hz 450 W 230 Vac ±10% 50 Hz 450 W INDEX OF PROTECTION - IP20 OPERATING TEMPERATURE - 5°C - 35°C (41°F - 95°F) ENVIRONMENTAL HUMIDITY - max 80% without condensation MAX ALTITUDE - 2000 m asl DIMENSIONS - Height: 35 cm/13.8” Width: 20 cm/7.9” Depth: 16 cm/6.3” WEIGHT - ZeroAir 5 7 kg/15 lbs ZeroAir 20 9 kg/20 lbs PNEUMATIC CONNECTIONS - Compressed air inlet: G 1/8” female Purified air output: G 1/8” female In GC as flame oxidizer in FID and FPD detectors Process/Environmental Analysers for FID, THC, NOX, BTX and SOX
