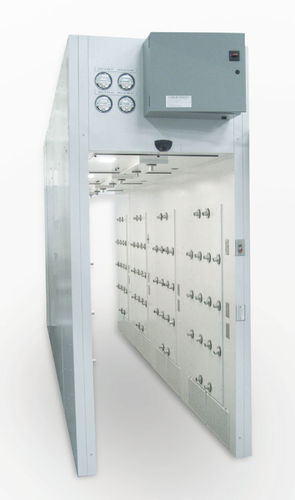

Clean room shower CAP701KD-ST4 series

decontaminationairtunnel type

Standard-Profile Straight-Through Air Showers quickly and effectively remove particles that will otherwise be carried into your cleanroom. Our decontamination air showers feature rugged construction and adjustable, high velocity air jets. Features Durable and Cleanroom-Approved Painted Cold Rolled Steel Shell Epoxy or Urethane Sealant Color HMI Touch Screen (2) Anodized Aluminum framed Safety Glass Doors with Hydraulic Door Closers Anodized Aluminum Fixed Bottom Door Sweeps (4) LED Recessed Light Fixtures with Wall Switch, (8) LED Recessed Light Fixtures with Wall Switch for Double Door Models (128) Adjustable Anodized Aluminum Nozzles (8) Adjustable Anodized Aluminum Ceiling Nozzles (8) Removable High Pressure Interior Nozzle Wall Panels (4) 5HP (3.7kW), 3600RPM Sealed Ball Bearing Continuous Duty Motors (Motor meets or exceeds U.S. EPAct and NRCan Canadian efficiency standards) (4) Superior Efficiency Direct Drive Aluminum Airfoil Wheels 7800 FPM (39.62 m/s) Average Nozzle Velocity 7600 CFM (3.59 m3/s) Average (4) 24x24x11.5, 99.99% HEPA Filters (1) Magnehelic Pressure Gage (16) Wall Return Air Grills with 10x20x1 MERV 8 Prefilters (4) 2-1/2 Inch Diameter Sprinkler Sleeves Programmable Microproc
