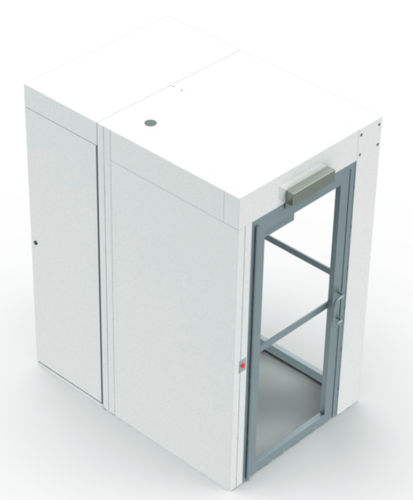

Clean room shower CAP701LP-ST5 series

decontaminationairtunnel type

CAP701LP-ST5 Low-Profile Straight-Through Air Showers have an overall assembled height of 95 in. Units have the blower assembly, HEPA filter and electrical components mounted on the side to permit the lower height. They can be assembled in a space 96 in. high, making them ideal for retrofits or where ceilings can’t be penetrated. These cleanroom entry systems quickly and effectively remove particles that will otherwise be carried into your cleanroom. Features Durable and Cleanroom-Approved Painted Cold Rolled Steel Shell Epoxy or Urethane Sealant Color HMI Touch Screen (2) Anodized Aluminum framed Safety Glass Doors with Hydraulic Door Closers Anodized Aluminum Fixed Bottom Door Sweeps (5) Surface-mounted LED Light Fixture with Wall Switch (160) Adjustable Anodized Aluminum Nozzles (10) Adjustable Anodized Aluminum Ceiling Nozzles (10) Removable High Pressure Interior Nozzle Wall Panels (5) 5HP (3.7kW), 3600RPM Sealed Ball Bearing Continuous Duty Motor (Motor meets or exceeds U.S. EPAct and NRCan Canadian efficiency standards) (5) Superior Efficiency Direct Drive Aluminum Airfoil Wheel 7800 FPM (39.62 m/s) Average Nozzle Velocity 9500 CFM (4.48 m3/s) Average (5) 24x24x11.5, 99.99% HEPA Filters (1) Magnehelic Pressure Gage (20) Wall Return Air Grills with 10x20x1 MERV 8 Prefilters (5) 2-1/2 Inch Diameter Sprinkler Sleeve Programmable Microprocessor PLC with 0-99 second adjustable run time and 0-10 second adjus
