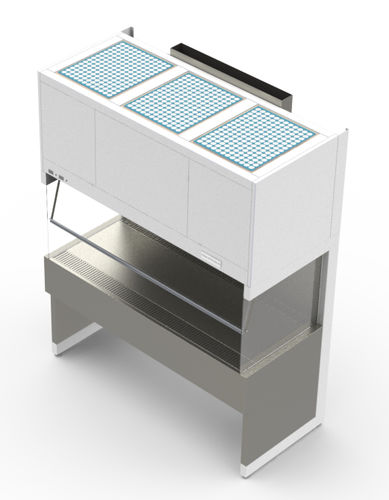

Exhaust clean bench EU CAP412

laboratoryfloor-standingHEPA

he Series 412 vertical laminar flow clean benches are specifically designed to create a freestanding ultra-clean mini-environment. These clean benches, or mini-environments, are available in a variety of sizes and styles engineered to provide excellent solutions for many air filtration applications. The systems may vary from vertical flow benches with open interiors to exhausting clean benches with wet process, to recirculating temperature control Class10 systems. Clean benches can be used in conjunction with cleanrooms to create clean zones. They can also be used in lieu of or supplemental to a cleanroom. Often times in larger cleanrooms, there are a few“critical clean” areas. It is sometimes more cost-effective to build a lower class cleanroom and supplement it with clean benches than it is to create a higher class cleanroom. This is especially true when over 60% of a typical cleanroom floor space is area where clean manufacturing or storage does not occur. Features Removable type 304 #4 finish stainless steel work surface with staggered 0.34” diameter perforations on the front and rear sections Welded liquid-tight type 304 #4 finish stainless steel exhaust plenum with 1-1/2” diameter center drain coupling Welded 16 gauge steel filter cabinet with a white powder coat finish Welded 11 gauge 2x4 tubular steel lower frame with a white powder coat finish Type 304 #4 finish stainless steel exhaust duct Type 304 #4 finish stainless steel back panel Hinged clear polycarbonate front face shield
