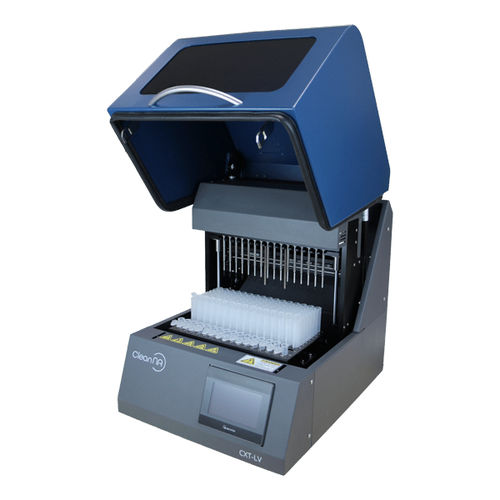

Our CleanXtract LV is designed to extract nucleic acids from large volume samples, with a capacity of up to 4 mL per sample and processing 16 samples simultaneously. The system works efficiently with magnetic bead-based kits, featuring UV-decontamination control, heating functions, and high-speed orbital shaking, making it a reliable and powerful tool to kick-start your workflow. Additionally, it offers disposable cartridges for a simplified process with a user-friendly touch screen interface.
Benefits
Large Sample Volume
Easy operation
Compatible with range of extraction kits
Compact design
Compatible kits
Clean Cell Free DNA Kit (CE-IVD)
For the extraction of cfDNA fragments from human plasma
Clean Circulating LV DNA Kit
For the isolation of circulating DNA from large volume plasma/serum samples
Contact us for more possibilities
Specifications
Throughput - Up to 16 samples
Sample volume - 0.05 mL – 4 mL
Elution volume - 15 – 400 μL
Processing time - 25 – 120 min (depends on sample type and method)
Disinfection - UV lamp
Heating - Yes
Orbital spinning - Yes
Size - 36 x 45,5 x 44,6 cm
Net weight - 38 kg
Power supply - AC 100 – 240 V, 50 – 60 Hz
