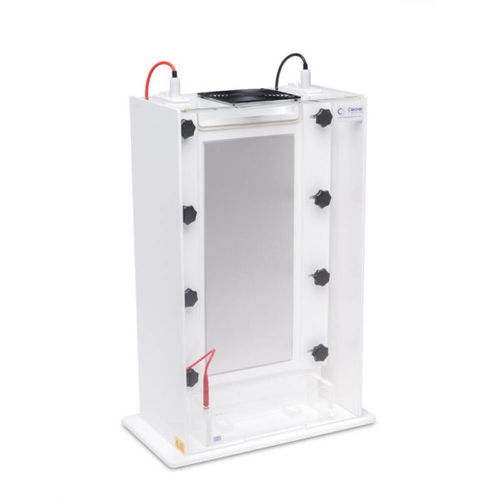

DNA sequencing electrophoresis tank CSQ20 series

vertical

Run up to 48 samples Enhanced gel heat homogenisation Variable low or high buffer volume 20 x 50cm format Ideal for a variety of large format vertical gel applications, these units offer advanced features for enhancing gel resolution and ease of use, essential when handling gels of this size. Each unit contains ultra soft silicone seals for easy plate sealing and trouble free runs, even over extended run times. Resolution is enhanced by using an aluminium heat sink plate, essential for even sample migration. Added convenience is provided by a removable lower buffer tank and upper buffer drainage tap. Toughened glass plates are available for use in the high temperature/denaturing conditions required for some applications. Special buffer chambers allow either low buffer volumes to be used for economy or high buffer volumes to be used for extended runs. A wide range of interchangeable comb, space and glass plate options allows a large number of techniques to be easily accomplished including; DNA Sequencing, 2-D analysis, Micro-satellite analysis, DNA fingerprinting, Gel shift assays, Single-Strand Conformation Polymorphism (SSCP), Heteroduplex and Oligonucleotide analysis.
