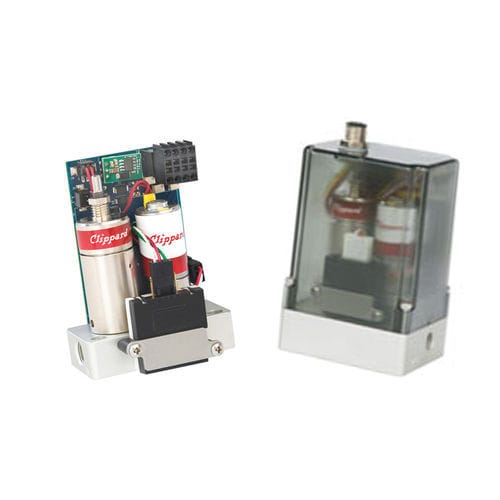

Flow controller CFC-HGE-BDE

pressuremass flowmedical

The Cordis Flow Controller utilizes an extremely fast-reacting MEMS technology sensor upstream from Clippard's proportional valve. Unlike other mass flow controllers, the Cordis flow controller requires less than one minute warm-up, features a pressure drop ≤14" H2O, and includes flow ranges as low as 0 to 30 sccm. Standard control options include 0.2 to 10 VDC, 4.32 to 20 mA, and 3.3 VDC Serial. IP65 housing available for light industrial applications. 50:1 turndown ratio Compact size and weight ≤14" H2O pressure drop <1 minute warm-up Multiple low flow ranges <50 ms response time ≤25 mV resolution Optional integrated regulator
