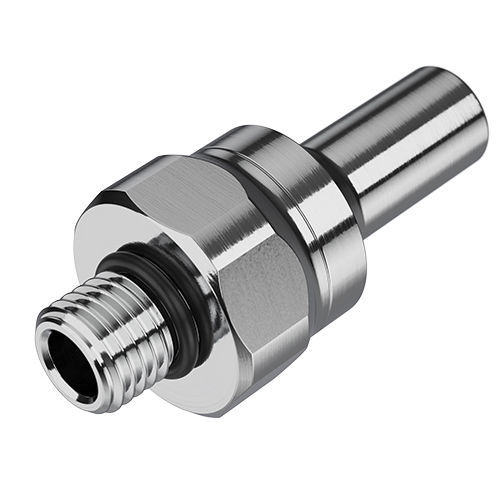

Liquid Cooling coupling BLQ4D46004
spring

Liquid Cooling coupling
Liquid Cooling coupling
Liquid Cooling coupling
Add to favorites
Compare this product


Characteristics

Applications
for Liquid Cooling
Other characteristics
spring

Description

1/4″ Blind Mate SAE-04 Valved In-Line Liquid Cooling Coupling Insert Material: Brass Material Finish: Chrome Pressure Range: Vacuum to 120 psi, 8.3 bar Color: Chrome Mounting Option: Thread Temperature Range: 0°F - 240°F (-17°C - 115°C) Seal Options: EPDM Valve Spring: Stainless Steel Valve Option: Valved Body Type: Insert Spillage: Spillage is < 0.025 cc per disconnect at 0 psi and < 0.055 cc per disconnect rated at 120 psi; Inclusion < 0.025 cc per connect Weight: .001 Each Bag Qty: 10
