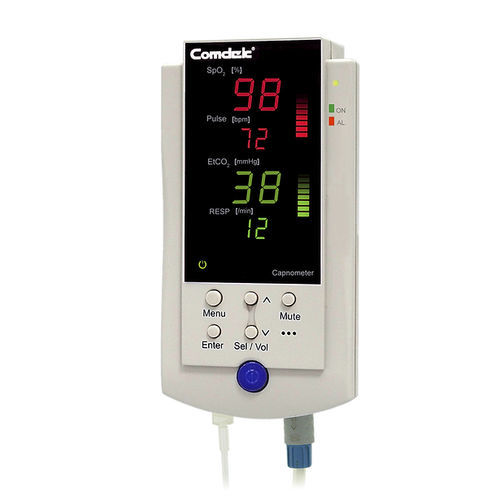

Hand-held pulse oximeter MD-661P

for hospitalbattery-poweredwith separate sensor

Comdek uses end-tidal capnography monitoring values to distinguish the exhaled capnography (EtCO2) and respiration rate (Respiration Rate) of the lungs, to determine the position of the intubation, and to assist physicians in assessing the depth and effectiveness of extracardiac massage compressions. Technical Specifications Display SpO2, Pulse Rate, EtCO2, Respiration Rate Screen Large LED display with EtCO2, SpO2, Pulse, Resp SpO2 Accuracy 70% ~ 100% ± 2%, 50% ~ 69% ± 3% Pulse Rate Accuracy 20bpm ~ 305bpm ± 1% CO2 Range 0 mmHg ~ 100 mmHg CO2 Accuracy 0mmHg ~ 38 mmHg ± 2 mmHg, 39mmHg ~ 100 mmHg ± 5 mmHg Respiration Range 0bpm ~ 150 bpm Respiration Rate Accuracy 0bpm ~ 150 bpm ± 1% Sound Volume and Mute Selectable Power four Alkaline AA size batteries、AC/DC Adapter Memory 72 hours Dimension 170(L) x 88(W) x 44(H) mm Weight 340 g(without batteries)
