Radioisotope production line Y-90/Lu-177 C.A.

semi-automatic

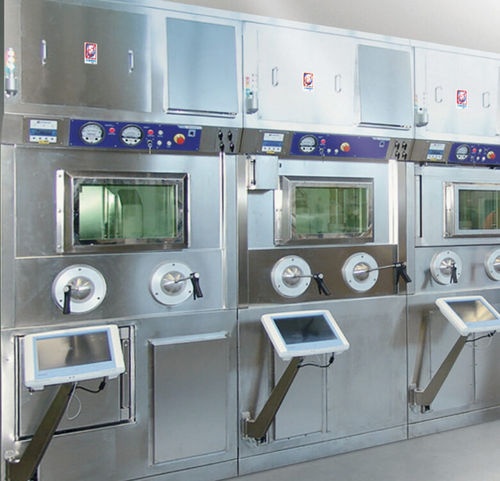

Number of working chambers: 5 Type of process: Terminal sterilization Type of shielding: Lead 80mm / Lead 50mm Automation systems available: Automatic cutting system for irradiated quartz ampoule Particularly interesting features: Semi-automatic dispensing of volumes in the range of microliters for radioactive product Handling management of highly concentrated and corrosive substances, at room temperature and in evaporation Protective acid-proof coating with fluoropolymer (ventilation) Working chambers made of plastic material resistant to radiation, corrosion and able to provide shielding to beta-radiation Productivity: 104 vials per batch, semi-automatic process (operator dependent). Production line consisting of 5 interconnected hot cells with internal doors divided into two areas and dedicated to the production of 90Y and 177Lu C.A The external ones are dedicated to the formulation of individual isotopes which, through the intermediate doors, converge into a central cell in which a terminal sterilization process is possible by means of an autoclave and subsequent discharge. The formulation part includes micro-dispensers and peristaltic pump dispensing systems capable of supporting the operator in the preparation, formulation and dispensing phases. Given the particular nature and difficult management of highly concentrated radio-isotopes such as 90Y and 177Lu, it is necessary to manage micro-volumes and therefore employ specific devices such as automatic micro-pipettors.
