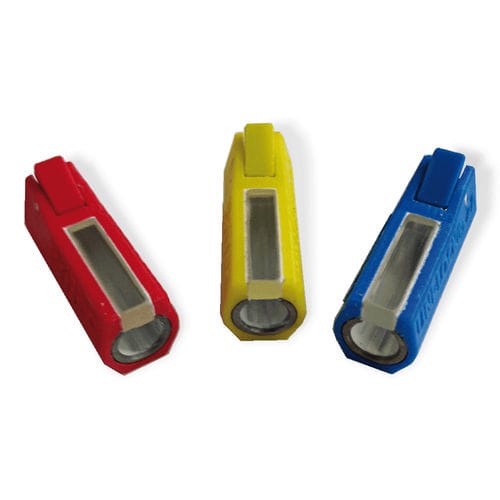

This is a compact syringe shield with a lead glass window and clamp lock. The lead glass is completely encapsulated in tungsten material. For this reason radiation leakage is not possible. The interior of the shield is coloured white for clear visibility.
The shields offer a shielding of 2-mm tungsten.
Construcion material - - Tungsten
Shielding (W) - mm - 2
Highlights
No radiation leakage
Portable
Color recognition
for 1 ml syringe
External Ø - mm - 12.4
Length - mm - 74
for 1 ml syringe
External Ø - mm - 12.4
Length - mm - 77
for B&D luer lock 1 ml syringe
External Ø - mm - 16.6
Length - mm - 75
for 2 ml syringe
External Ø - mm - 16
Length - mm - 53
for 2 ml syringe
External Ø - mm - 16
Length - mm - 59
for 3 ml syringe
External Ø - mm - 16
Length - mm - 65
for 3 ml syringe
External Ø - mm - 16
Length - mm - 68
for 5 ml syringe
External Ø - mm - 20
Length - mm - 60
for 5 ml syringe
External Ø - mm - 20
Length - mm - 65
for 5 ml syringe
External Ø - mm - 20
Length - mm - 68
for 10 ml syringe
External Ø - mm - 22.5
Length - mm - 75
for 10 ml syringe
External Ø - mm - 22.5
Length - mm - 85
