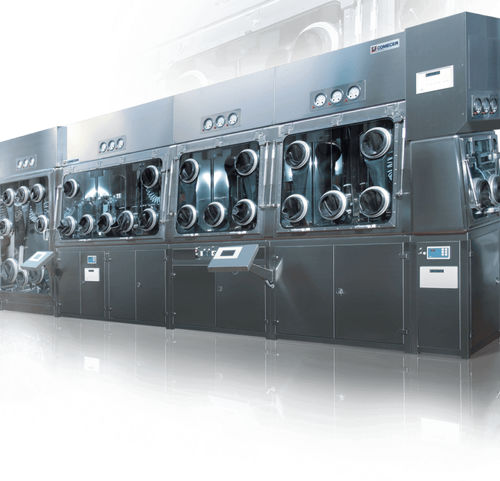

Research and development isolator

class IIIcontainmentdrying

This isolator, ideal for research and development,  is designed to provide the maximum protection for the operator during the manipulation operations and to ensure the separation between the external environment and the interior of the isolator itself. Highlights 6 working areas Turbulent flow with nitrogen O2 monitoring Negative pressure in respect with laboratory environment Fully PLC controlled Fully washable The operator is standing while working and he/she is completely isolated from the manipulated material. The 6-stages isolator is divided into the following glove box chambers: Chamber A – Reactor provided with tubes that connect to synthesis chamber C Chamber B – Material inlet prechamber Chamber C – Synthesis 1 Chamber D – Drying, a Mazzali Systems vacuum dryer is connected on the rear side Chamber E – Synthesis 2  equipped with MT analytical balance Chamber F – Material outlet prechamber equipped with barrier sack system
