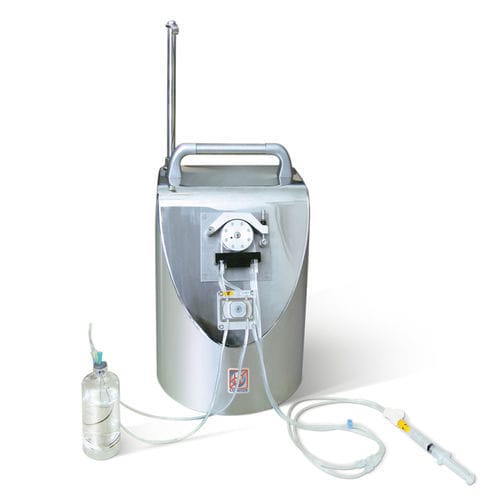

TIMO 2 is a semi-automatic dispensing system that makes use of components and software developed and adopted by COMECER on ALTHEA PC automatic fractionators.
TIMO 2 dispensing system allows the fractionation of radiopharmaceuticals in single-dose syringes of PET and SPECT isotopes and for radiotherapy.
Highlights
Compact size that allows to be installed in cells with small working areas
High ergonomics to facilitate loading/unloading of syringes and disposables
Suitable for the fractionation of radiopharmaceuticals in single-dose syringes of PET, SPECT isotopes and for radiotherapy
Recipe management, automation and workflow control by means of operator interface developed in accordance with cGAMP regulation
The system can be installed inside a shielded laminar flow isolator, thereby ensuring sterile radiopharmaceutical preparations.
The single-use set and the special patented pierceable septum allow packaging of the closed syringes ready to be transported to the administration unit, thereby protecting the sterility of the preparation.
The management software, combined with COMECER activity calibrators, allows for an easy and intuitive fractionation procedure and a quick preparation of the single-dose syringes. The filling system consists of a two-channel peristaltic pump. One channel is for the radiopharmaceutical, whereas the other is for the saline solution. By managing these two channels, the syringes can be filled with a defined amount of activity that can be diluted in saline solution until reaching the required volume.
