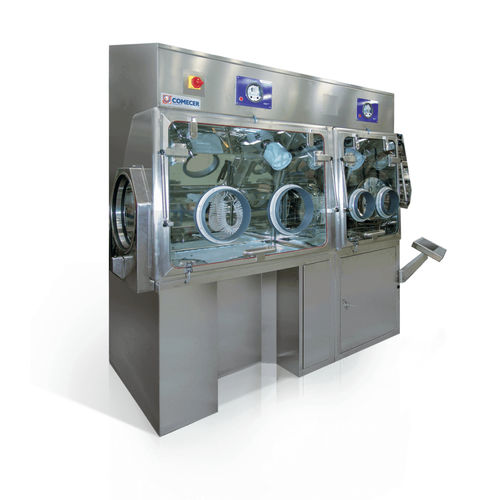

Dispensing isolator

class IIIfor the pharmaceutical industrycontainment

The isolator was designed to permit the dispensing and weighing activities of micronized highly potent substances (progesterone OEL 0,01 mg/m3 ). Highlights Fully PLC controlled Software GAMP 5 compliant Friendly operator interface Sliding Tray Pass through door for communication with adjoining chamber 190 mm glove flanges with gloves 270 mm glove flanges with gloves Continuous film port Diam. 380 mm rH+T sensor for temperature and humidity internal monitoring Magnahelic Manometers for the internal pressure control Inverter for ventilation fan speed control Automatic valves for air flow interception Jumo Manometers to monitor inlet and outlet filters obstruction This compact isolator is mainly constitute of two chambers: Pre chamber: to inlet material Main chamber: where to perform dispensing activities Both the chambers are equipped with an inlet single stage filtration placed inside the box, an outlet first stage filtration also inside and the second one outside. The isolator is also equipped with a special CIP system consisting in spray balls, spray guns and a solvent mixing system. Moreover a Drying In Place has been supplied on board with independent heaters, humidity and temperature probe inside each chamber. One 380mm diameter continuous liner port has been placed on the side of each chamber to easy exit large drum where the product is stored while only in the main chamber there is an integrated Hycoflex® system to take out the dispensed product. A paperless recorder Eurotherm was also integrated to record all the critical process data like temperature, humidity, chamber pressure.
