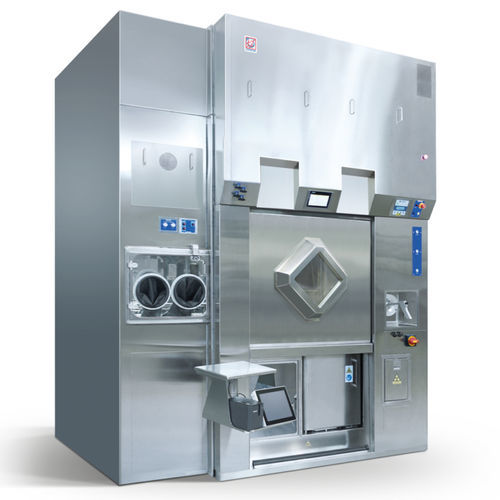

Aseptic shielded cell MIP LAF series

dispensingfor radiopharmacyfor research

The series of MIP-LAF hot cells is specially designed to house various dispensing system and radiochemistry modules. The MIP-LAF shielded isolator is equipped with laminar flow over the entire work area for aseptic operation in compliance with cGMP. Full laminar air flow working area Modular design and flexible configuration Touch screen for hot cell and dispensing system Airtight connections for radioactive fluids Fluid supply lines made of AISI 316L stainless steel with ball shut-off valves DOP test connections (filter leakage test) Internal pressure automatic adjustment by modulating valves High sensitivity tele-pliers (movement by ball bearings) Dose calibrator (available in the versions 2 Ci or 20 Ci) with touch screen console Product extraction system (Drawing System) Solid waste collection system Particle counter connection Illuminate™ MI: IIoT manufacturing intelligence platform and factory-floor management. The hot cell can be provided with several accessories such as the possibility of installing several models of telemanipulator, lateral autoclave and shielded or not shielded pre-chamber. The cell is shielded on all sides with 75 mm thick lead. Shielded door with lead glass window. The working area is made of AISI 316L stainless steel with Mirror-Bright surface finishing. Laminar flow and internal ventilation kept in continuous negative pressure. Perfect door closing is ensured by a system of inflatable gaskets placed around the door’s perimeter. The MIP-LAF cell is equipped with Comecer Drawing System, allowing the extraction of the vial without opening the cell, ensuring safe conditions for the operator, and with a shielded waste compartment.
