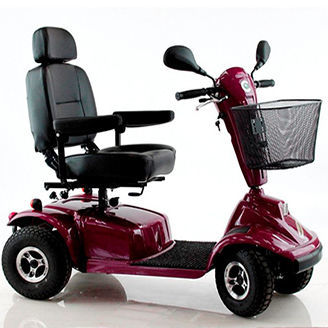

Electric mobility scooter LY-EW402-PLUS

4-wheelwith basket

4 wheel scooter SPCC framework, magnetic brake Seat with swival/ reclining/ forward or backwoard moving function Mechanism clutch for rear wheel Angle adjustable handle Lift up armrest Battery charger : 5 AMP Motor: 450 watt Front wheel: 4.10/ 3.50-5 pneumatic tire Rear wheel: 4.00-5 pneumatic tire with suspenssion Max capacity: 120 kg Dimension: 1320 x 620 x 940 mm Front wheel - 4.10/3.50-5 pneumatic tire Rear wheel - 4.00-5 pneumatic tire Motor output - DC 24V 450W Brakes - Electro-magnet brakes Battery - 36 Ah x 12V x 2 pcs / 50 Ah x 12V x 2 pcs Battery weight - 25 kg (12.5 kg x 2 pcs) / 29 kg (14.5 kg x 2 pcs) Range - Up to 36 km Slope grade-ability - 10° Turn radius - 1670 mm Max speed forward - 11 km/ hr Max speed backward - 4.5 km/ hr Max loading - 120 kg Weight (without battery) - 68 kg Anti-tip wheel - Yes Head light - Yes Signal light - Yes Kerb climbing ablility - 100 mm Groove crossing ability - 140 mm Free wheel mode - Electric-magnet brake clutch system Tiller adjustment - 4 steps, 13° per one step
