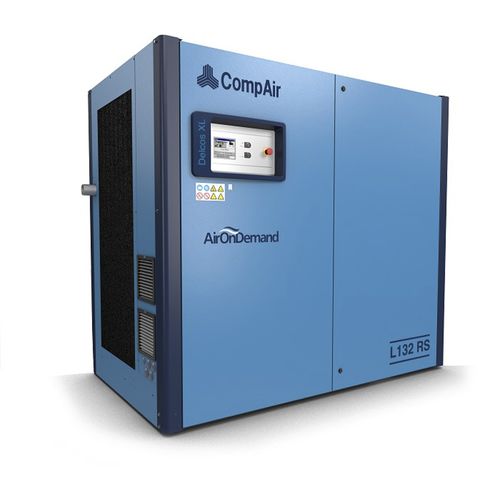

Medical air compression system L90
screwlubricated

medical air compression system
medical air compression system
medical air compression system
medical air compression system
medical air compression system
medical air compression system
medical air compression system
medical air compression system
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
screw
Options and accessories
lubricated
Pressure

7.5 bar, 10 bar, 13 bar
(108.78 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 24.79 m³/min
(875.45 ft³/min)

Min.: 13.52 m³/min
(477.45 ft³/min)

Power

90 kW, 110 kW, 132 kW
(122.37 hp, 149.56 hp, 179.47 hp)

Weight

2,447 kg, 2,532 kg, 2,764 kg
(5,394.7 lb, 5,582.1 lb, 6,093.6 lb)

Noise level

73 dB, 75 dB, 76 dB

Length

2,290 mm
(90.2 in)

Width

1,327 mm
(52.2 in)

Height

2,039 mm
(80.3 in)

Description

The 90 to 132 kW range of lubricated screw compressors comprises fixed speed and regulated speed (RS) models, single and two stage air compressors. We are pleased to announce a range extension on our FourCore compressors – adding 110 and 132kW fixed and regulated speed units to an already outstanding range – combining best-in-class compressed air efficiency with a compact and sustainable design. New CompAir FourCore range balances two-stage efficiency with single-stage footprint CompAir has announced the launch of its new 110 to 250 kW FourCore compressor range, combining best-in-class compressed air efficiency with a small footprint and sustainable design for eco-conscious businesses. The FourCore range offers all the capabilities of a two-stage compressor, but with only the footprint of a single-stage unit. It therefore provides businesses – who might not have previously had the on-site space available – the opportunity to take advantage of the capabilities of two-stage technology. And when compared with previous single-stage compressors in this size range from CompAir, the new models are up to 8 per cent more efficient, offering a best-in-class oil-lubricated solution for decision makers. Our application engineering team, based at the Simmern Centre of Excellence production site in Germany has designed and engineered a brand new, patented technology that offers best-in-class energy efficiency. They have developed a premium efficiency 2-stage model for fixed and regulated speed compressors using the new technology of the compact double stage airend.
