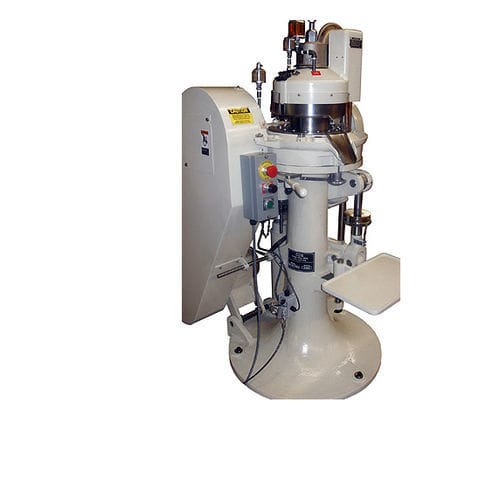

Tablet press STOKES 512

for the pharmaceutical industrypilotfilling

The Stokes Model 512 is a heavy-duty press with a two-piece rotary head that provides clean operations and good tablet quality. The press' hardened steel worm and replaceable bronze headgear give smooth, quiet transmission of power under the most adverse operating conditions. Three Point Transit Leveling This arrangement permits simple and precise setups of feed frames. No resetting of the feeder is required. Stainless Steel Hopper Hoppers contain vertical adjustment and lock provisions. Dust Removal Suction Nozzles These nozzles are positioned above and below the die table for clean operation. Adjustable Upper Roll This upper roll permits compacting of tablets at various points in the die to extend the die's life. The roll also minimizes capping and laminating of tablets. Keywayed Upper Punch Sockets Provide punch alignment when producing tablets of irregular shape are standard. Pin Type Transit Level Feeder A pin type transit level feeder funnels material directly over the die cavity. Stationary pins cause a cascading action that improves filling of the dies for accurate tablet weight. An adjustable gate also maintains fluidity tunnel of granulation and prevents packing in the frame. Safety Features Locking the lever in a disengaged position reduces the likelihood of accidental starting. All guards are interlocked to prevent access during operation. Adjustable Spring Release The release maintains desired pressure and helps protect tools against damage or breakage in case of accidental overload. Pneumatic release is optional.
