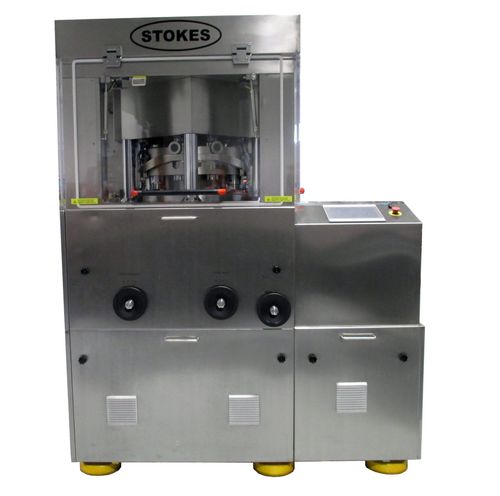

Press for the pharmaceutical industry STOKES 349

for tablets

30 ton, Single sided with Pre-Compression, accepts special large roller style tooling. Maximum tablet diameter is 76 mm. Heavy-duty cast and welded construction maintains rigidity during demanding product runs Large 40 HP motor capable of producing high-tonnage compressions on large diameter tablets Open style mechanical feeder provides reliable powder feeding Tooling incorporates replaceable tips for high wear applications Compression area isolated from lower motor/utility area for increased cleanliness Press controls provided by simple push buttons: Start/Stop/Jog/Emergency Stop Main motor and feeder motor powered by AB PowerFlex drives with speed control. Built for Safety; ABB Safety Interlock system for all upper and lower doors, including interlocked turn-over wheel cover Controls housed in NEMA 4X Stainless Steel enclosure with Vortex cabinet cooler PUNCH ROLLER DESIGN Cam follower design provides smooth motion of upper and lower tooling during high compression and ejection forces
