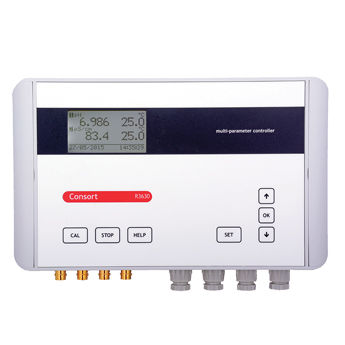

PH controller R36 series

multi-functionprocess

Gold Plated BNC 2 Multiparamter Channels 2 (3) Independable Control Systems Control types proportional on/off Safety Features Stop control without stopping measurements Automatic Resume Washing Program Programmable alarm Pre-programmed standards pH: 1.68, 2.00, 4.00, 4.01, 6.87, 6.99, 9.18, 9.21, 10.01, 12.00, 12.45 (at 25°C) Conductivity: 1413 pS/cm, 12.88 mS/cm, 111.8 mS/cm (at 25°C) No interférence between electrodes Stability algorithm with intuitive indicator Selectable resolution Capacitive compensation Galvanic isolated RS485 interface Galvanic isolated 4-20mA outputs High Accuracy Free software Open Communication Protocol The R3600 adds 2 (3 for R3630) independent programmable control Systems to measurement System of C3000 series. It’s possible to connect up to 31 controllers with a computer. A programmable alarm function prevents overdosing of Chemicals in the process liquid. R3614 and R3624 are versions with 1 extra DIN connector for 4-pole conductivity electrodes.
